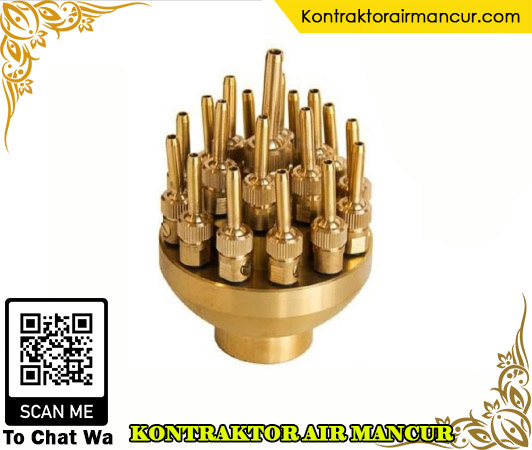

Deskripsi Nozzle Air Mancur Adjust Blossom :
| No | Name | Parameters |
| 1 | Product Name | Nozzle Air Mancur Adjust Blossom |
| 2 | Material | Brass /Stainless Steel Ajustable 3 Layers Flower Blossom Fountain Nozzles |
| 3 | Water Flow Rate (m3/h) | 12 – 25m3/h |
| 4 | Water Display Spray Diameter | 2.3 – 3.5m |
| 5 | Other Model | DN25, DN40, DN50 Brass / Stainless Water Fountain Jet Nozzle Optional |
| 6 | Weight | 1.45Kg, 2.2Kg, 2.7Kg |
| 7 | High Light | Blossom brass / stainless steel fountain nozzles, DN25 Brass / stainless steel Fountain Nozzles |
| 8 | Water Inlet | 1″ , 1.5″, 2″ Optional Brass / Stainless steel Water Fountain Jet Nozzle |
| 9 | Water Display Spray High | 2.5 – 4.5m |
| 10 | Pressure | 50 – 120Kpa |

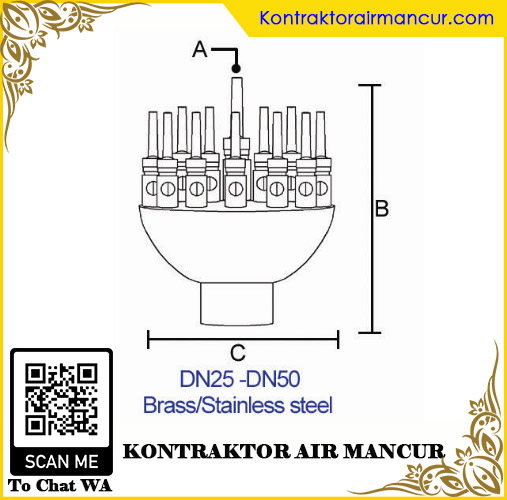

Diameter Ukuran Nozzle Air mancur :
Table Diameter Sheet :
| Remarks | Specifications | ||
| DN50 | DN40 | DN25 | |
| A (mm) | 6*1+4*28 | 6*1+4*28 | 6*1+4*18 |
| B (mm) | 185 | 170 | 145 |
| C (mm) | 155 | 150 | 106 |
DATA TEKNIS NOZZLE :
| Code | Model | Connectiions (G) | Pressure (Kpa) | Discharge (m3/h) | Height (m) |
Diameter (m) |
| 012135 | SKsT50 | 2″ | 70-120 | 22-25 | 3.5-4.5 | 2.8-3.5 |
| 012136 | SKsT40 | 1 ½” | 60-100 | 18-20 | 3.0-3.5 | 2.5-3.0 |
| 012137 | SKsT25 | 1″ | 50-100 | 12-15 | 2.5-3.0 | 2.3-2.8 |

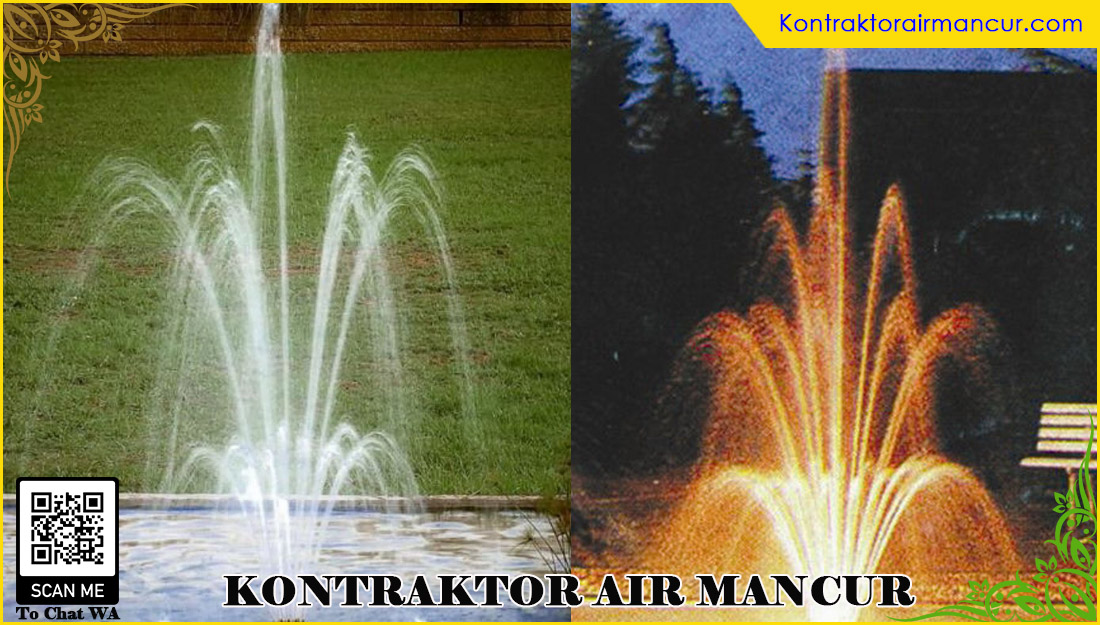

Contoh Nozzle Ketika Digunakan :
Demikian informasi dan ulasan singkat mengenai produk nozzle air mancur adjust blossom yg bisa kami tuliskan semoga bisa menjadi referesi untuk pengunjung website ini. jika membutuhkan informasi lebih detail langsung saja untuk menghubungi kami di :
