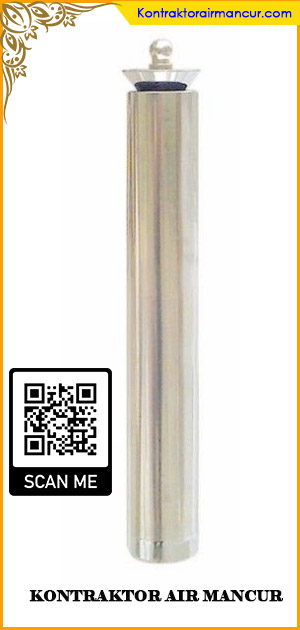

Deskripsi Nozzle Air Mancur Trumpet :
| No | Name | Parameters |
| 1 | Product Name | Trumpet Nozzle |
| 2 | Material | Stainless Steel Stainless Steel Trumpet Fountain Nozzle |
| 3 | Thread | FNPT Stainless Steel Trumpet Fountain Nozzle |
| 4 | Water Flow Rate | 1.5 – 30m3/h |
| 5 | Pressure | 50 – 100Kpa |
| 6 | High Light | Trumpet Water Feature Nozzle, Stainless Steel water fountain sprayers |
| 7 | Water Inlet | 1/2″, 3/4″, 1″, 1.5″, 2″, 2.5″, 3″ Stainless Steel Mushroom Fountain Nozzle |
| 8 | Water Spray High | 0.28 – 1m |
| 9 | Water Spray Diameter | 0.3 – 2.2m |
| 10 | Item Weight | 0.3 – 1Kg |

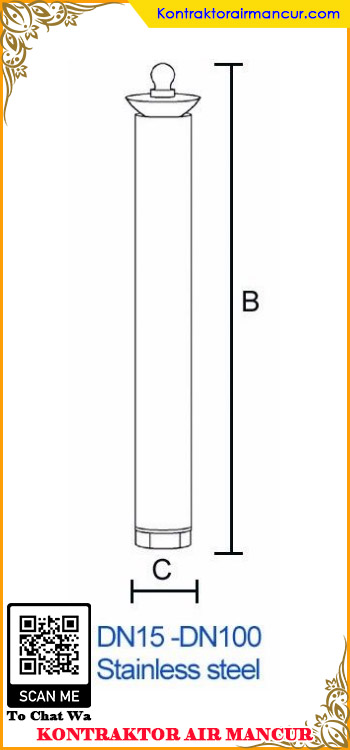

Ukuran dan Diameter Nozzle :
Tabel Diameter Nozzle Trumpet Jet :
| Remarks | Specifications | ||||
| DN50 | DN40 | DN25 | DN20 | DN15 | |
| B (mm) | 380 | 375 | 290 | 290 | 285 |
| C (mm) | 71 | 60 | 49 | 45 | 39 |
DATA TEKNIS NOZZLE :
| Code | Model | Connections (G) | Pressure (Kpa) | Discharge (m3/h) | Height (m) |
Diameter (m) |
| 012240 | MLbB100 | 4″ | 80-100 | 30 | 1.0 | 2.2 |
| 012241 | MLbB80 | 3″ | 80-100 | 20 | 0.8 | 1.6 |
| 012242 | MLbB65 | 2 ½” | 80-100 | 15 | 0.8 | 1.5 |
| 012243 | MLbB50 | 2″ | 60-100 | 8 | 0.6 | 1.3 |
| 012244 | MLbB40 | 1 ½” | 60-100 | 5 | 0.4 | 1.0 |
| 012245 | MLbB25 | 1″ | 60-80 | 3.5 | 0.33 | 0.6 |
| 012246 | MLbB20 | ¾” | 50-80 | 2.5 | 0.28 | 0.5 |
| 012247 | MLbB15 | ½” | 50-80 | 1.5 | 0.28 | 0.3 |
Hasil Pengaplikasian Nozzle Saat Di Kolam :
Sekian informasi dan ulasan singkat tentang produk air mancur menari murah dan berkualitas ini. nozzle air mancur yang kami ulas berkualitas terbaik dan pastinya pancuran air yang di hasilkan sangat presisi. jik tertarik dengan produk ini langsung saja kontak kami di :
